AstraZeneca 2.2MW Solar Energy System – Mt. Vernon, Indiana

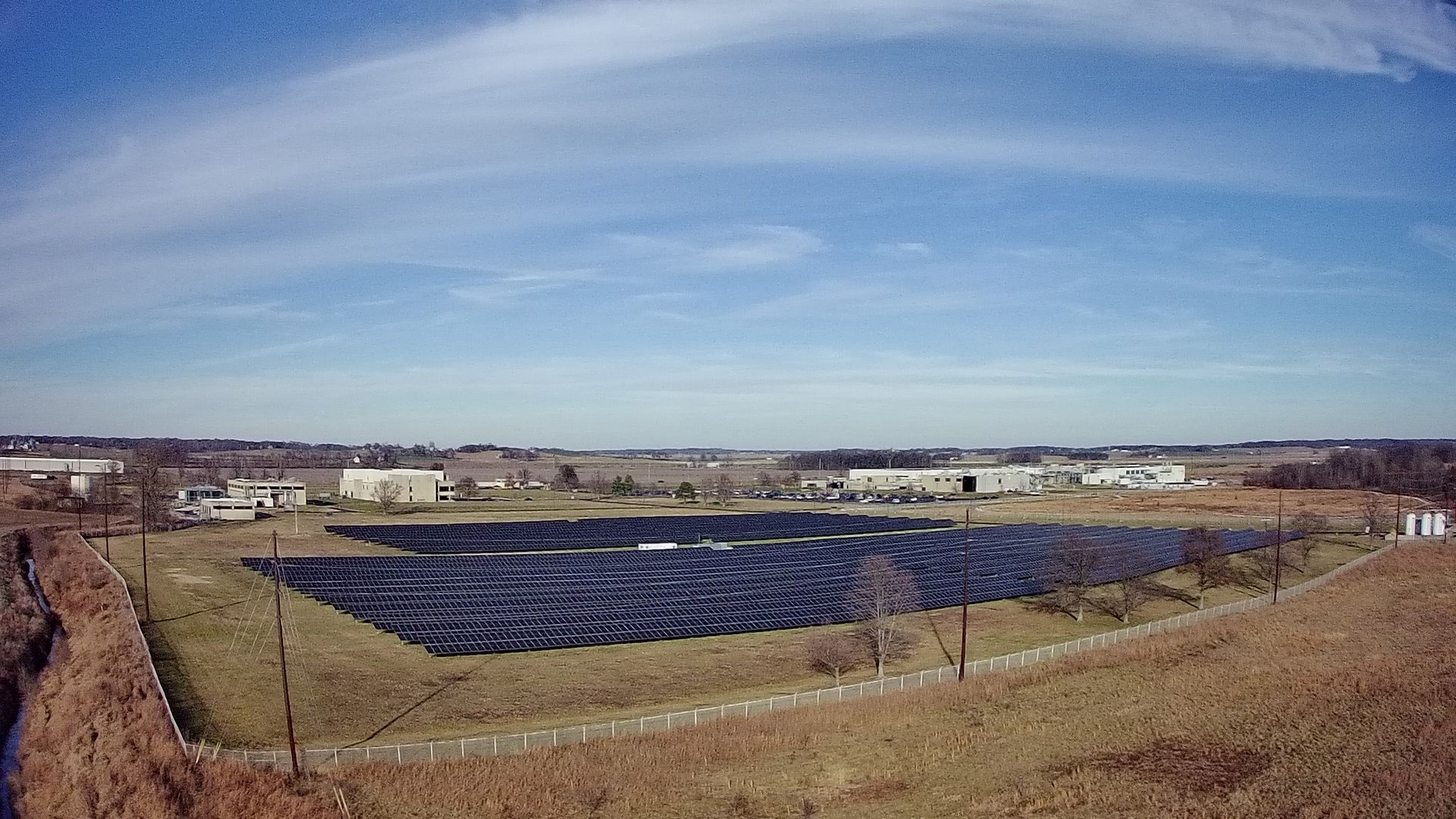

Our expertise and experience in renewable energy enabled AstraZeneca to generate approximately 50% of the electrical load from onsite solar generation from a 2.2MW ground mounted array. Our design & approach saved AstraZeneca several thousands of dollars on procurement and installation costs of the highly reliable system. The result was an extremely high-quality solar energy system delivered and installed at a low per-watt installation cost.


Specifications: 2.2MWdc rated system, 2MWac rated system, REC Solar Panels, RBI Solar Ground Mounted Racking, Yaskawa/Solectrica 166KW inverters rated at 600Vac output, Square D I-Line 4000A Power Distribution/Monitoring control panel, AlsoEnergy Energy Monitoring Software, 4000KVA Transformer, Interconnection Voltage: 12.47KV.

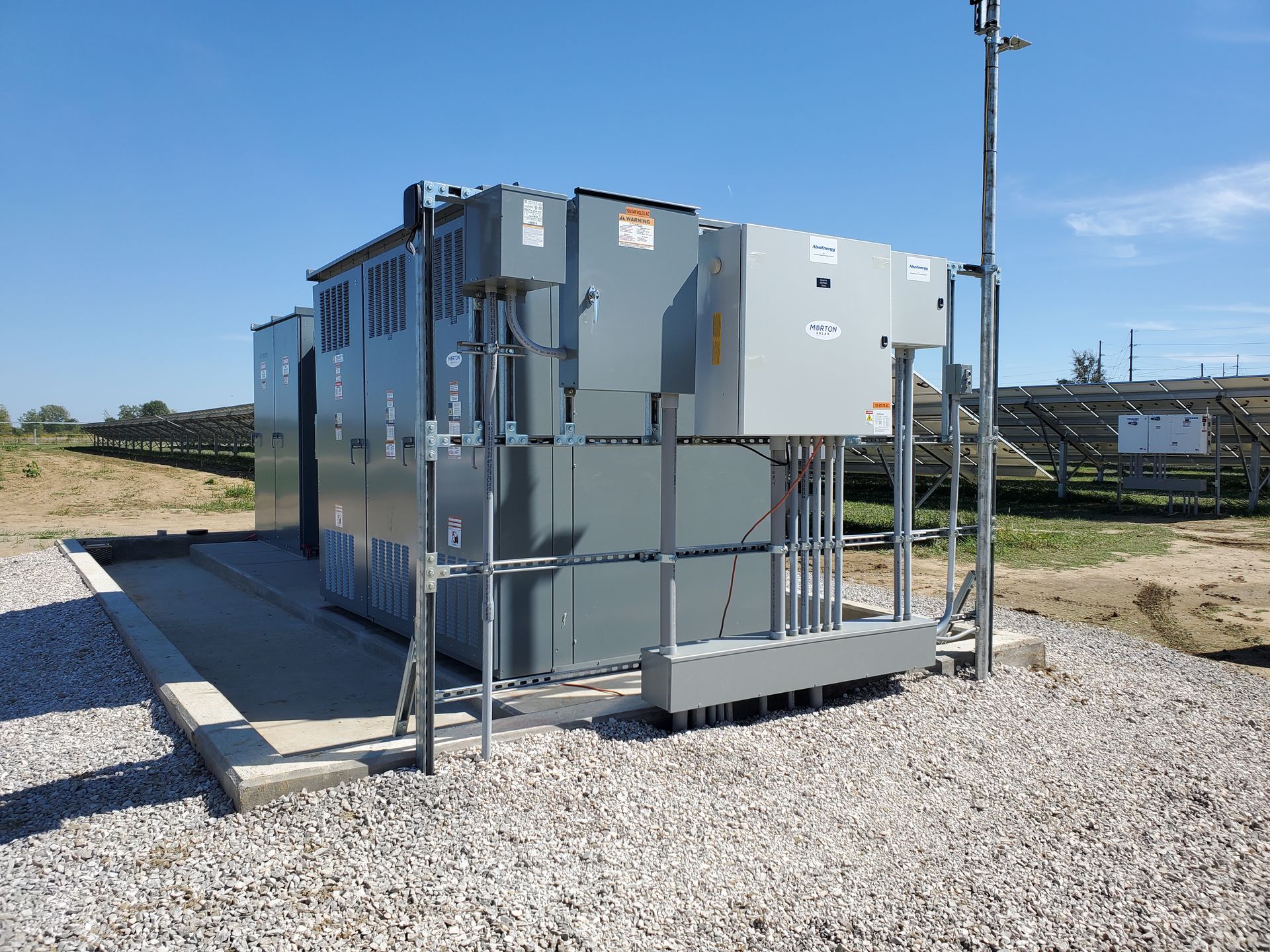

A large electrical box is sitting in the middle of a gravel field.

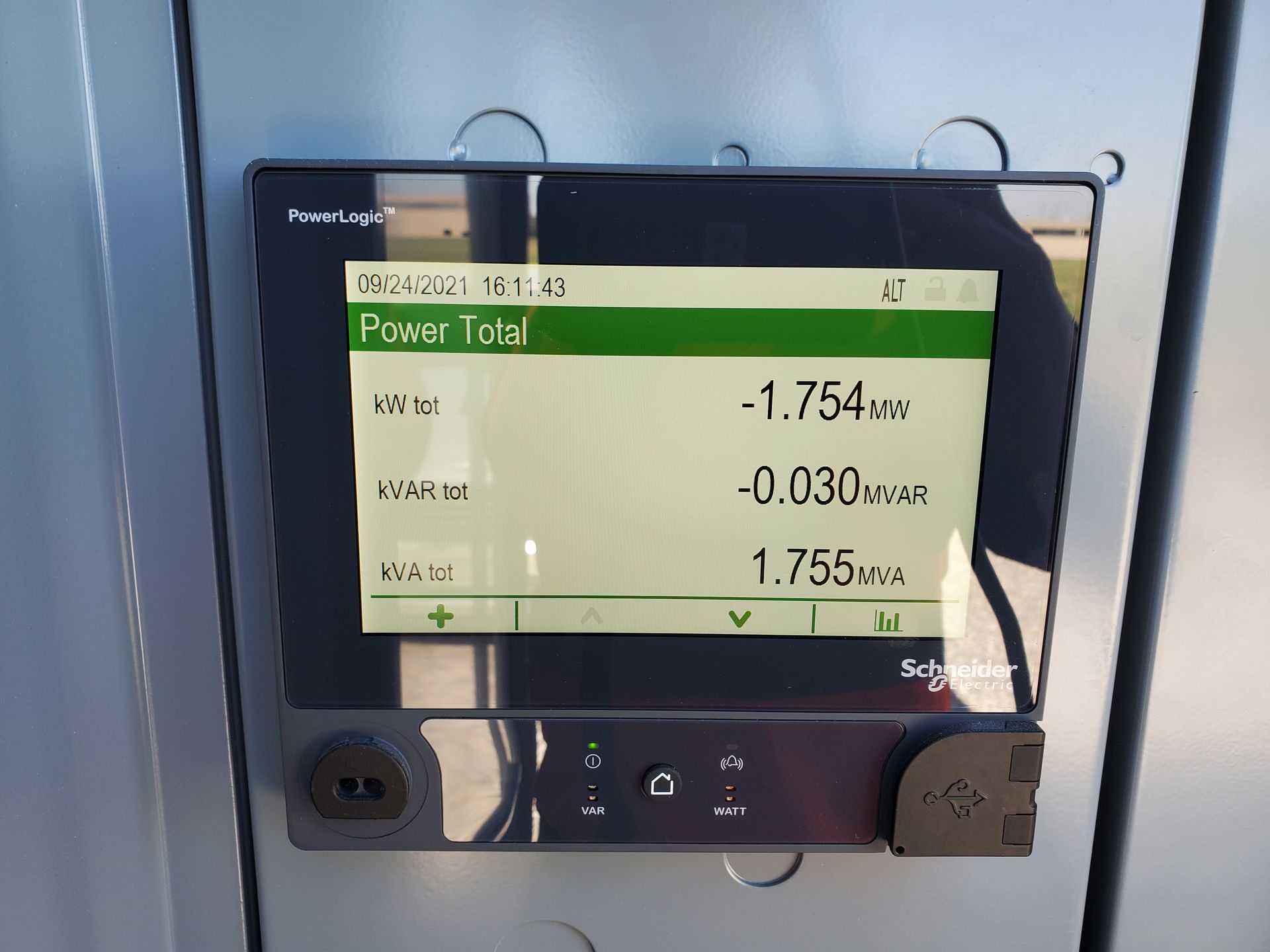

A computer monitor displays a power total of 1.754

Faces of Humanity

Button

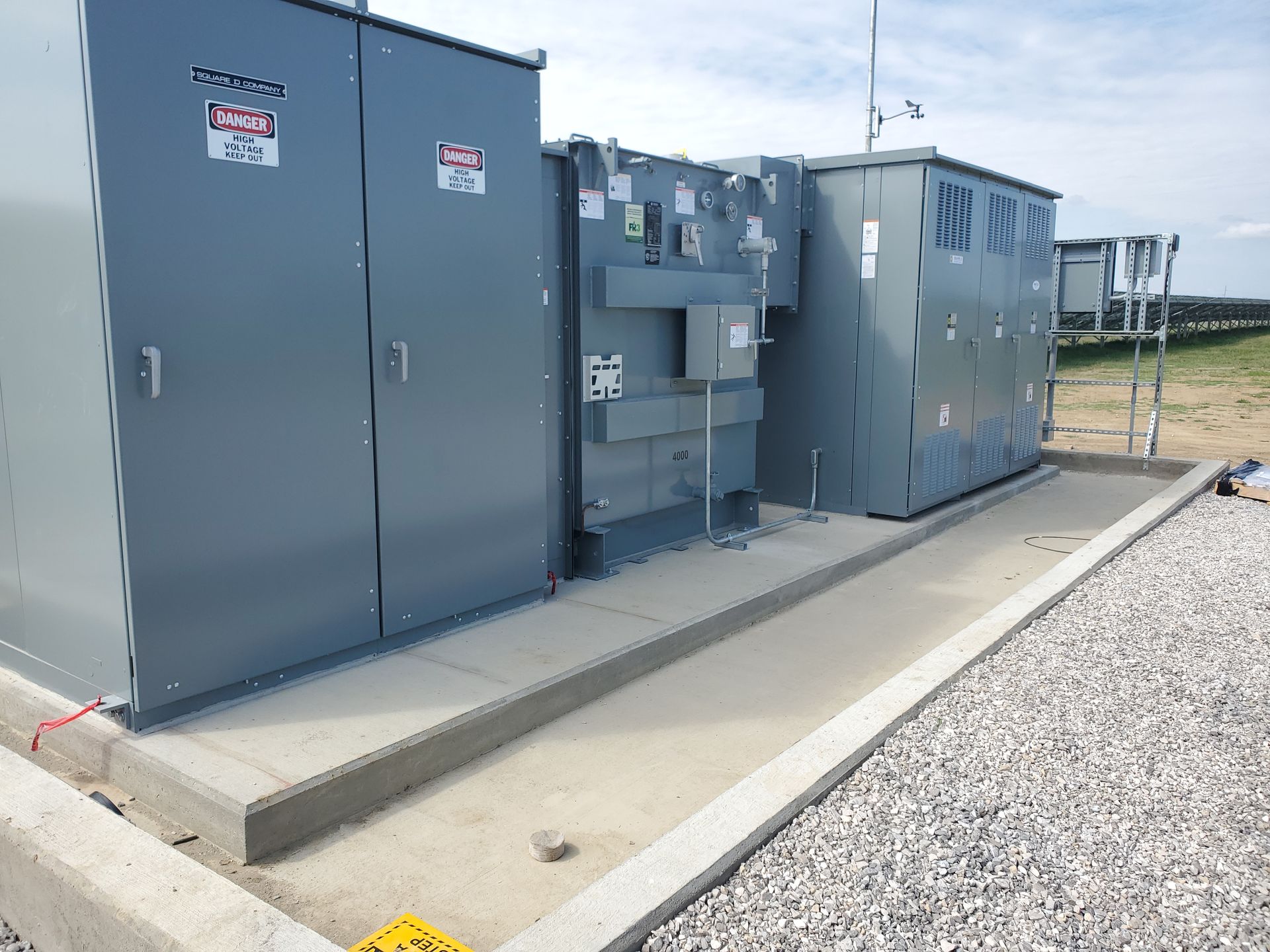

A bunch of electrical equipment is sitting on top of a gravel lot.

Sands of Time

Button

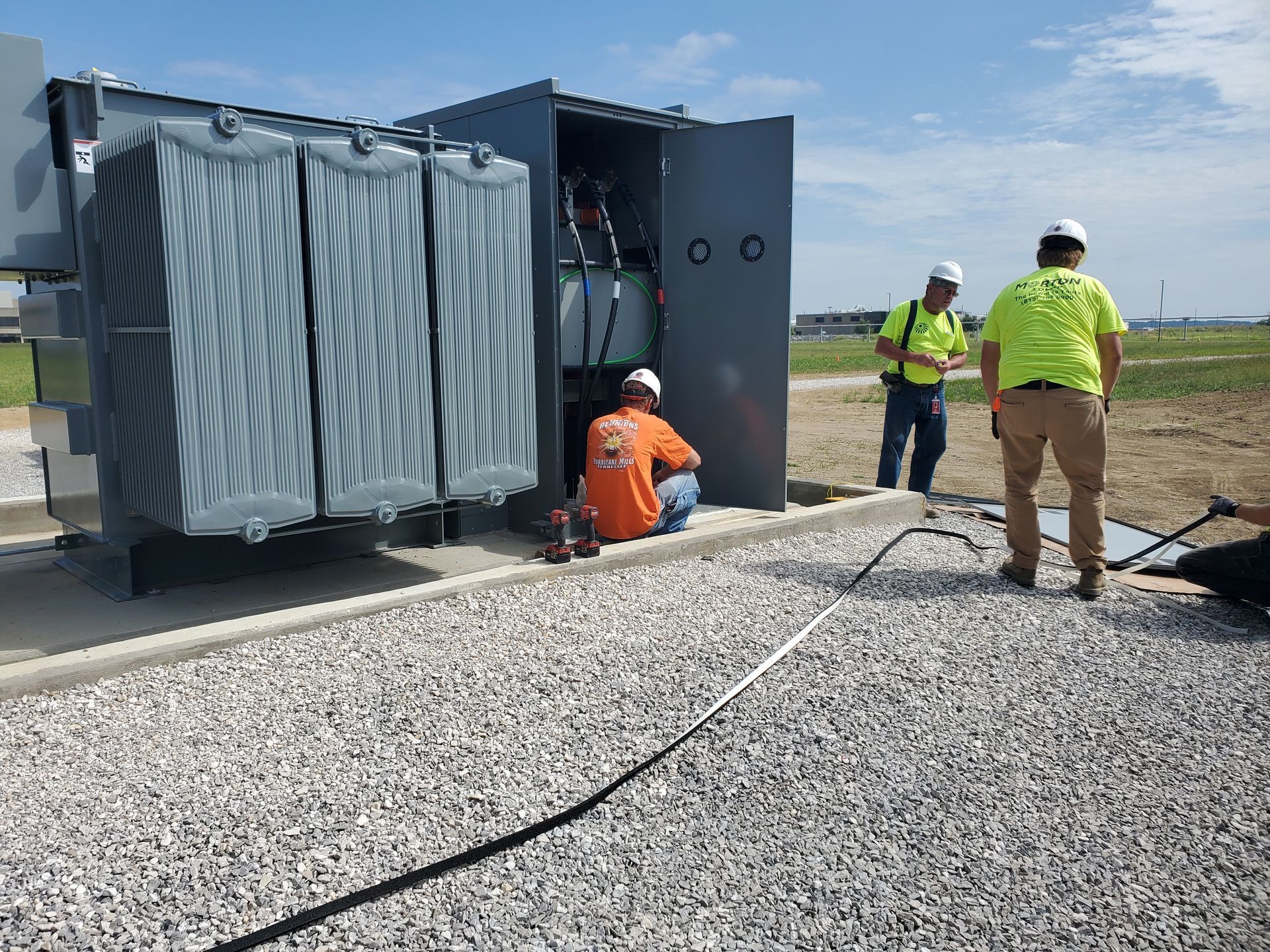

A group of men are working on a large transformer.
